High Tension Spring Kits
SUPERIOR AIR LINE & CABLE SUSPENSION
An INDUSTRY-FIRST FROM TRAMEC SLOAN, the X31HT “High Tension” tender spring design provides optimized suspension and control performance for straight-line tractor-trailer connection systems. Available in 25" and 16" lengths.
SUPERIOR SUSPENSION PERFORMANCE: Heavy duty design eliminates “sag and snag” failures caused by weak, overloaded springs that are commonly found on connection systems. Our spring has a 38% larger diameter and 17% thicker gauge wire than competitor springs.
CONTROL PERFORMANCE: The X31HT provides reliable spring “snap-back” after vehicle articulation events, even after years of stretch-and-relax cycles. Incorporates optimized spring-steel that prevents “spring bounce” and the resulting “sawing” effect that damages the paint and finish on the back of the tractor cab, often leading to tractor body corrosion
EXTENDED LIFE: The X31HT tender spring-steel is galvanized prior to coiling to ensure exceptional corrosion resistance throughout the life-cycle of the spring.
View the Fleet Sheet for more detailed information.
FS2252HTX31
X31HT Double Tender Kit, 25" (2 Springs, 2 Sleeves, 4 Carabiners, 2 X31C Wide Body Clamp)
FS2252HT
X31HT Double Tender Kit, 25" (2 Springs, 2 Sleeves, 2 Carabiners, No Clamp)
FS225HTX31
X31HT Single Tender Kit, 25" (1 Spring, 1 Sleeve, 2 Carabiners, 1 X31C Wide Body Clamp)
FS225HT
X31HT Single Tender Kit, 25" (1 Spring, 1 Sleeve, 1 Carabiner, No Clamp)
FS216HTX31
X31HT Single Tender Kit, 16" (1 Spring, 1 Sleeve, 2 Carabiners, 1 X31C Wide Body Clamp)
FS216HT
X31HT Single Tender Kit, 16" (1 Spring, 1 Sleeve, 1 Carabiner, No Clamp)
X31C Wide Body Clamp
The composite constructed X31C 3-in-1 clamp features tool-free installation for the mechanic, a wide-body design for improved connection line securement, and a unique locking mechanism that eliminates the need for clasps, which are typically prone to failure.
- Secures with the included wire-gated carabiner
- Corrosion-free composite clamp body
- Made in the USA!
- U.S. Patent No. 12,013,062
View the Fleet Sheet for more detailed information.

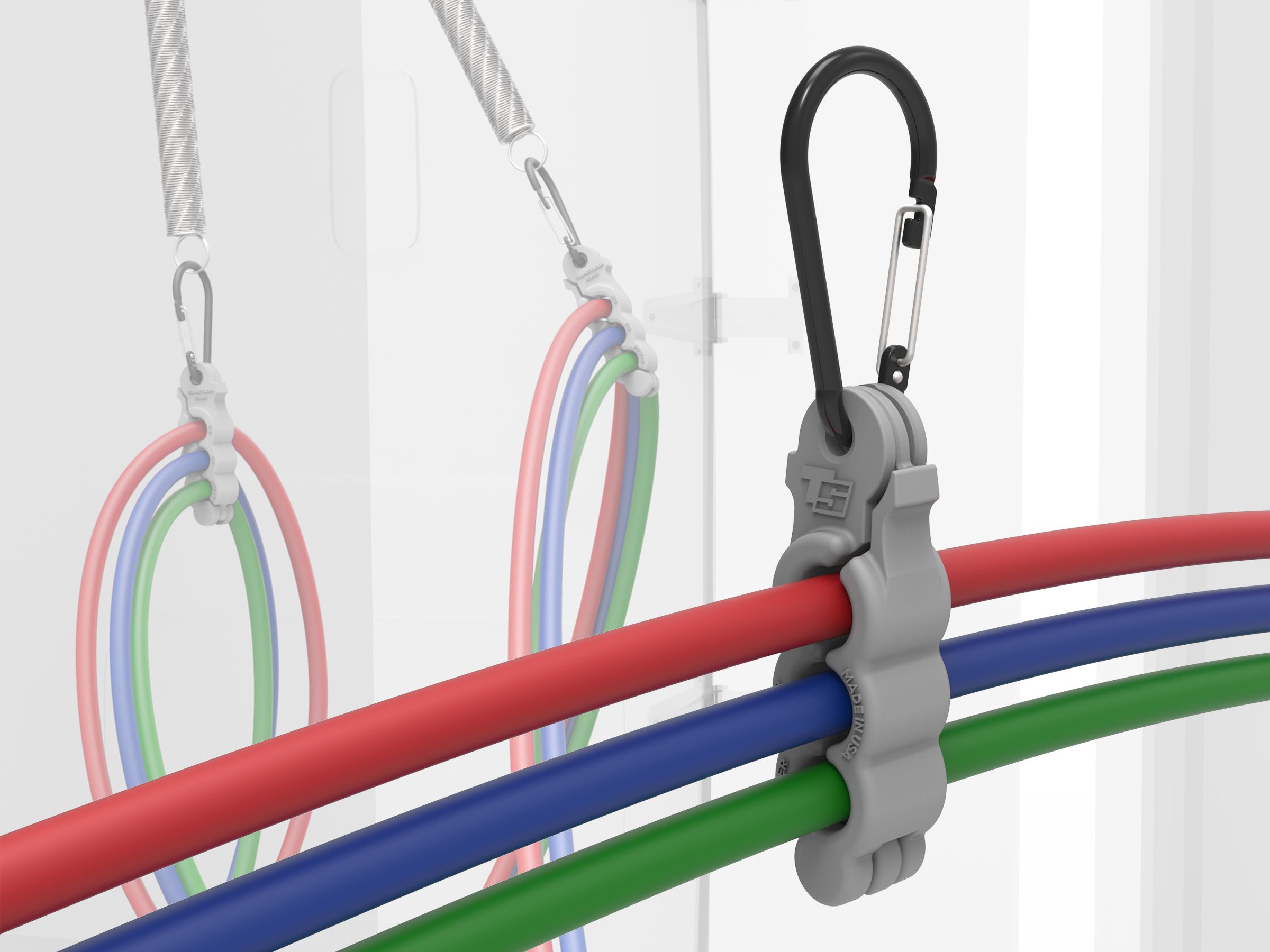

X31V3: Vertical 3-Hole Clamp
Enjoy all the the features and benefits of the X31C but in a clamp designed for unwrapped lines. The holes of the X31V3 are specifically sized to correctly fit two air lines and one electrical cable.
- Secures with the included wire-gated carabiner
- Corrosion-free composite clamp body
- Made in the USA!
- U.S. Patent No. 12,366,308
View the Fleet Sheet for more detailed information.
