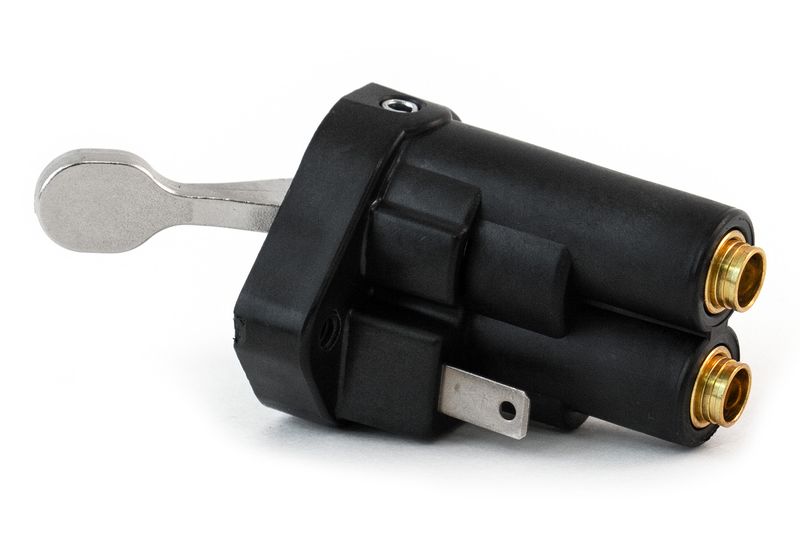

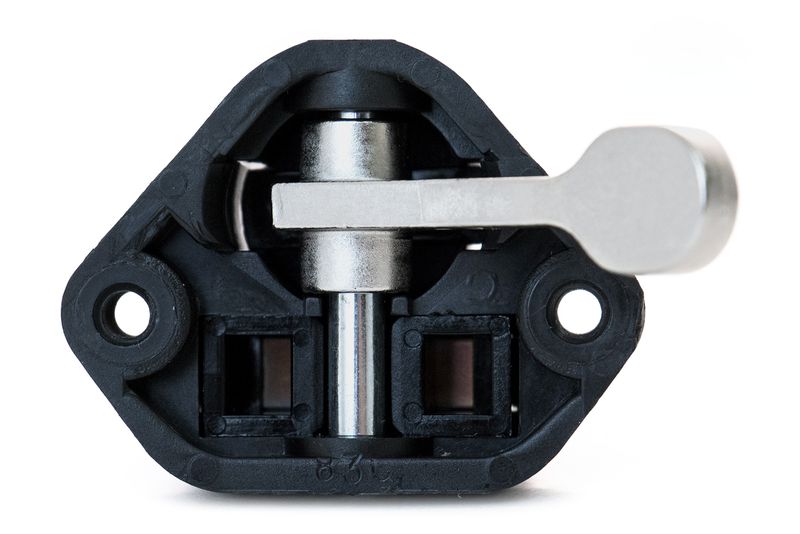

Air-Electric, 3-Way Toggle Valve, Flipper

401162

AIR & AIR-ELECTRIC TOGGLE & FLIPPER VALVES

• Used for a Variety of Air & Air-Electric Applications Such as Air Suspensions, Lift Axles, Fifth Wheel Sliders and Differential Locks
• Push-to-Connect Fittings Mate Easily with 1/4" Nylon Tubing
• Max. Operating Pressure: 150 PSI
• Includes All Necessary Mounting Hardware
• Air-Electric Switches Include a Pressure Switch and Terminals for Indicator Lamps
• 5 Amp Resistive Current Load at 12 VDC
• Pressure Switch: Open Below 10 PSI, Closed Above 35 PSI
• Switch Off Position: No Air flow, Electrical Contacts Open. Supply is Blocked, Delivery is Vented
• Switch On Position: Air Flows through Valve, Electrical Contacts Closed. Supply is Connected to Delivery
